The Lynx 3.0 , redefining entry-level thermal imagers.

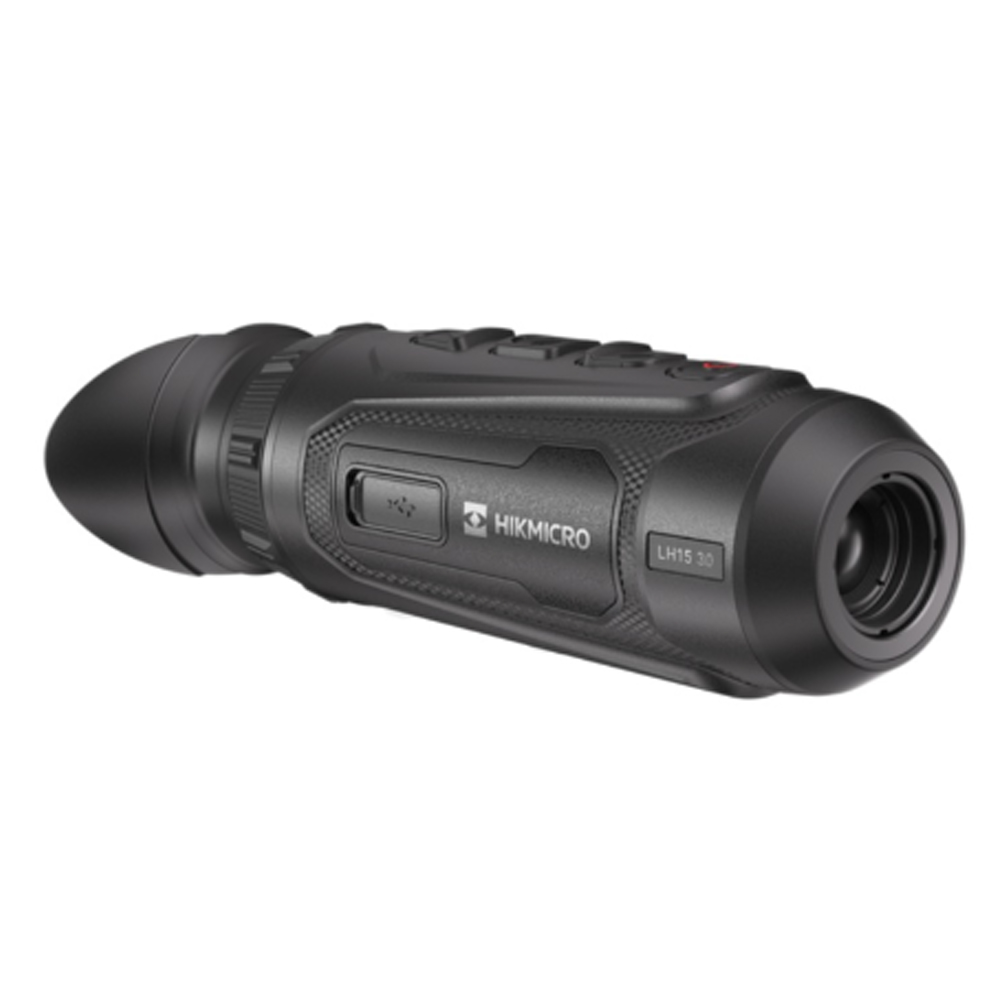

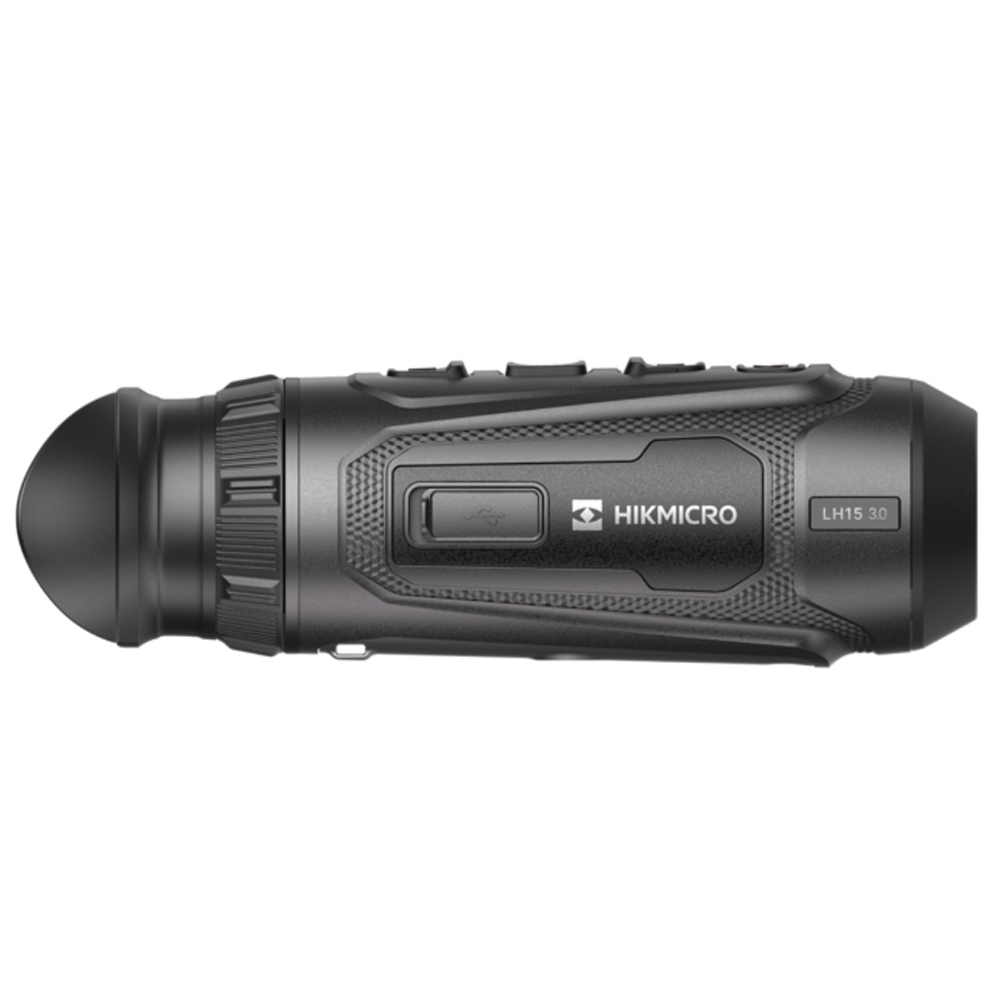

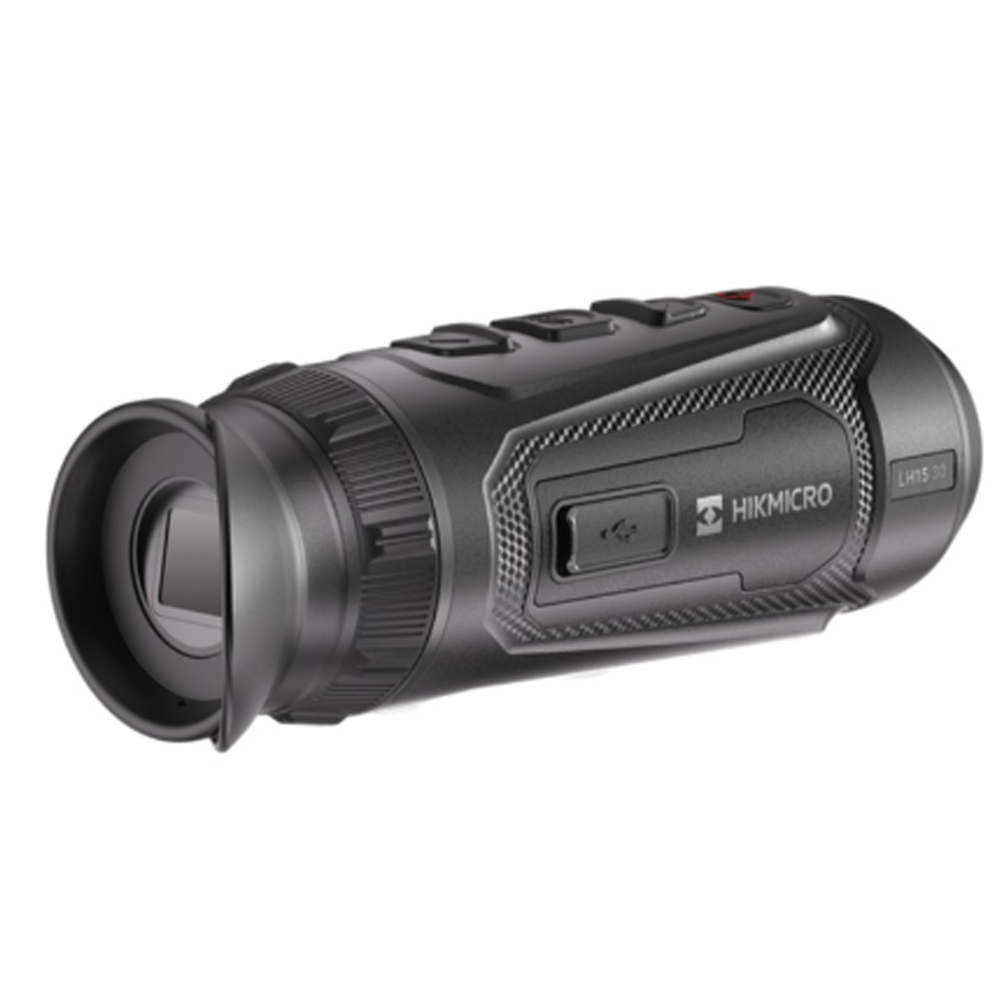

he HIKMICRO Lynx 3.0 LH15 is a professional-grade thermal monocular engineered for reliability and image precision. Featuring a 320 x 240 thermal detector and a 15mm F1.0 lens, it offers 2.2x base magnification, an 11.7 degree field of view, and a detection range up to 750 metres, making it ideal for forested or mid-range applications.

The LE15 integrates AI-powered Image Pro 3.0 and Zoom Pro algorithms to deliver refined clarity and accuracy across all conditions. Its HSIS shutterless imaging system provides fluid, noise-free visuals , essential for discreet operations or wildlife monitoring. Designed to perform in any environment, this unit maintains exceptional reliability and image quality under pressure.

Compact and resilient, the LH15 weighs 296.5 grams and includes a replaceable 18650 battery with up to 5 hours runtime at -20C. Designed to perform under pressure, it offers dependable, high-definition thermal imaging wherever your mission takes you.

Specifcations:
Image Sensor - VOx Uncooled Focal Plane Arrays
Max. Resolution - 320 x 240
Frame Rate - 50 Hz
Pixel Interval - 12 micrometer
Response Waveband - 8 to 14 micrometer
NETD - Less than 18 mK (@25C), F#=1.0
Lens (Focal Length) - 15 mm, F1.0
Focus Mode - Focus Free
Min. Focusing Distance - 7 m
Magnification - 2.2 x - 17.6 x (8x)
Field of View (H x V), Degrees / m @100 m - 11.7 x 8.8 degree / 20.5 m x 15.4 m
Detection Range - 750 m
Display - 1024 x 768, 0.39 inch, AMOLED
Contrast Adjustment - Yes
Brightness Adjustment - Yes
Palettes - Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit pupil - 6 mm
Eye Relief - 20 mm
Diopter (Range) - -5 D to +3 D
Tone Adjustment - Cold, Warm
Zoom Pro - Yes
HSIS (HIKMICRO Shutterless Image System) - Yes
Image Pro 3.0 - Yes
Sync Pro - Yes
Battery Type - Replaceable and rechargeable 18650 battery
Work Temperature / Humidity - From -30C to 45C (-22F to 113F); Humidity: 90 percent or Less
Protection Level - IP67
Weight - 296.5 g
