The Lynx 3.0 , redefining entry-level thermal imagers.

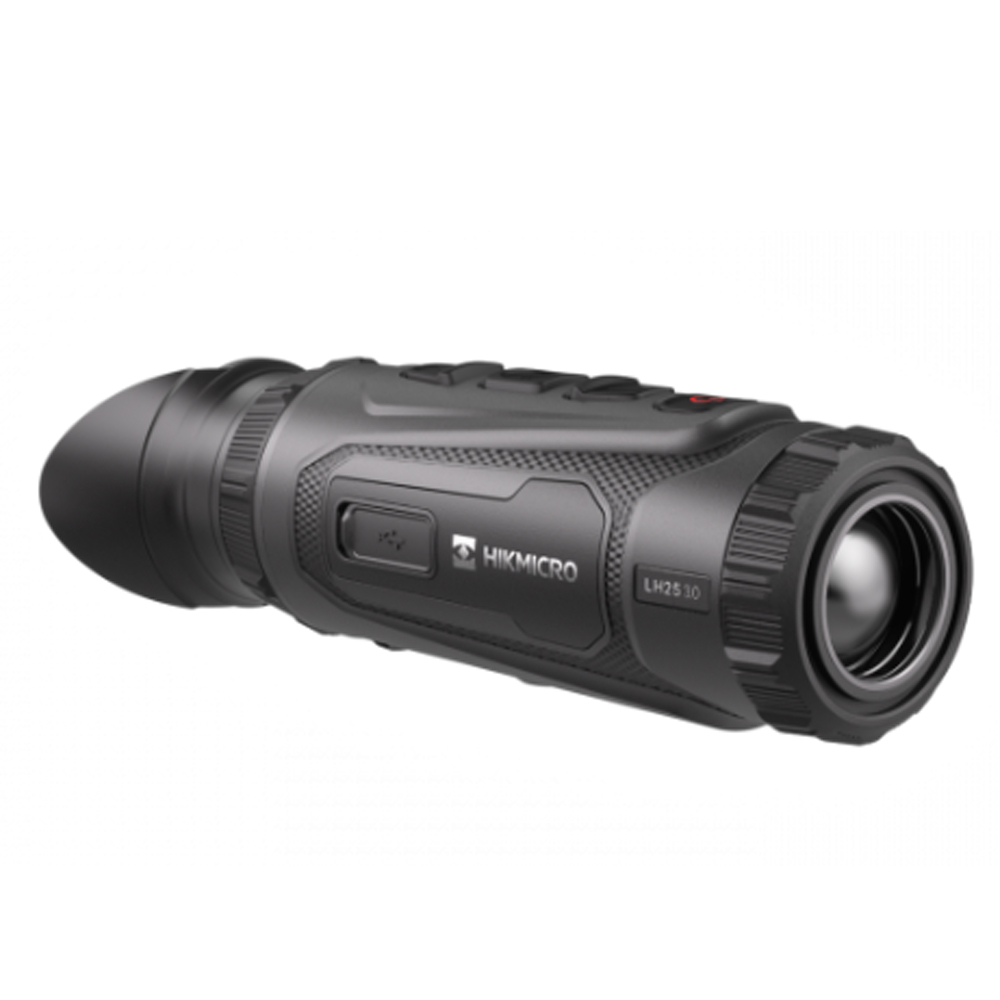

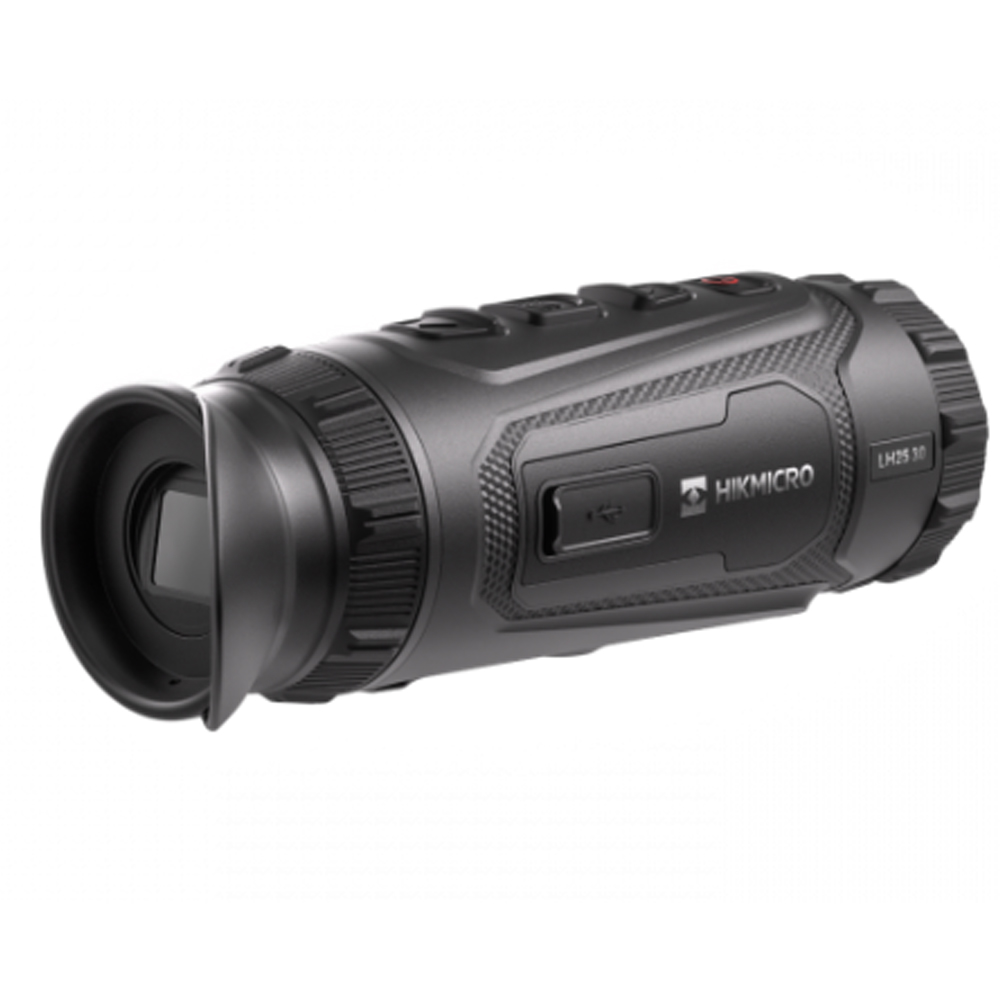

The HIKMICRO Lynx 3.0 LH25 is built for professionals requiring extended range and precision. With a 384 x 288 thermal detector and a 25mm F1.0 lens, it delivers 2.5x base magnification, a 10.5 degree field of view, and a 1200 - metre detection range, ensuring exceptional long-distance performance.

Driven by AI Image Pro 3.0 and Zoom Pro algorithms, the LH25 enhances image detail and consistency under all lighting conditions. Its HSIS shutterless system ensures fluid, silent image processing for uninterrupted use in tactical or wildlife applications.

Weighing only 328.5 grams, the LH25 combines portability with rugged dependability. The replaceable 18650 battery powers up to 4.5 hours at -20C, ensuring sustained operation for demanding professionals. Designed for open landscapes and technical use, it sets a new standard in thermal imaging efficiency.

Specifcations:
Image Sensor - VOx Uncooled Focal Plane Arrays
Max. Resolution - 384 x 288
Frame Rate - 50 Hz
Pixel Interval - 12 micrometer
Response Waveband - 8 to 14 micrometer
NETD - Less than 15 mK (@25C), F#=1.0
Lens (Focal Length) - 25 mm, F1.0
Focus Mode - Focus Wheel
Min. Focusing Distance - 3 m
Magnification - 2.5 x - 20 x (8x)
Field of View (H x V), Degrees / m @100 m - 10.5 x 6.4 degree / 18.4 m x 11.2 m
Detection Range - 1200 m
Display - 1920 x 1080, 0.49 inch, AMOLED
Contrast Adjustment - Yes
Brightness Adjustment - Yes
Palettes - Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit pupil - 6 mm
Eye Relief - 20 mm
Diopter (Range) - -5 D to +3 D
Tone Adjustment - Cold, Warm
Zoom Pro - Yes
HSIS (HIKMICRO Shutterless Image System) - Yes
Image Pro 3.0 - Yes
Sync Pro - Yes
Battery Type - Replaceable and rechargeable 18650 battery
Work Temperature / Humidity - From -30C to 45C (-22F to 113F); Humidity: 90 percent or Less
Protection Level - IP67
Weight - 328.5 g with Battery
